M310 155D Hinge Qck FO 45/9.5 w SC NP - Steel
M310 155D Hinge Qck FO 45/9.5 w SC NP - Steel
- Zero protrusionØ 35 mm cupAutomatic closing
- Min. cup drilling depth 12 mm
- Concealed hinge versionFull overlay
- Cup fixingfor screw fixing
- Adjustment facilitySide adjustment: ± 3 mm
- Häfele Lifetime Guarantee
- 25 years
Order reference
- For use with super compact cruciform mounting plates 311.71.500/502/504Order Hospa Ø 3.5 mm countersunk screws separately
The M310 155D Hinge Qck FO 45/9.5 w SC NP (product code 311.63.730) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Steel, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 311.63.730 from Essential Furniture Fittings for fast UK delivery.
Product Specifications
- Product Code
- 311.63.730
- Material
- Steel
- Pack Quantity
- 1 Each
4,287 In stock
£2.53
Ex. VAT: £2.11
This product is part of a range with 4 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 49 | £2.53 | — |
| 50+ | £2.03 | Save 20% |
- Technical Specifications
- Dimensions
| Material | Steel |
| Opening angle | 155° |

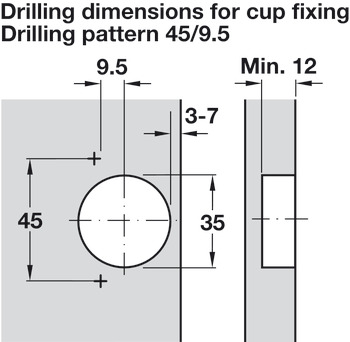

| Drilling pattern | 45/9.5 |
| Height | adjustment: ± 2 mm (via mounting plate) |
| Depth | adjustment: 2.5 mm |
| Cup drilling depth | 12 mm |
