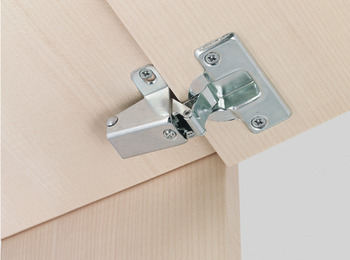

Swing Up 90D Hinge SF Cup Galvanised Steel Zinc Plated
Swing Up 90D Hinge SF Cup Galvanised Steel Zinc Plated
Area of application
- For straight flaps
- Version: Minimum of 2 required per flap
- Function: With automatic closing spring
- For door material: Wood
Material
- Steel
- Colour/finish: zinc plated
- Opening angle: 95°
- For lid thickness: 12 – 22 mm
- For lid width: ≤ 450 mm
- For lid height: ≤315 mm
- Cup drilling depth: 10 mm
- Cup fixing: For screw fixing

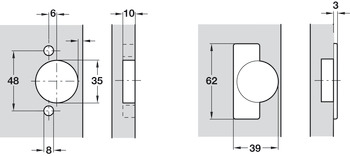

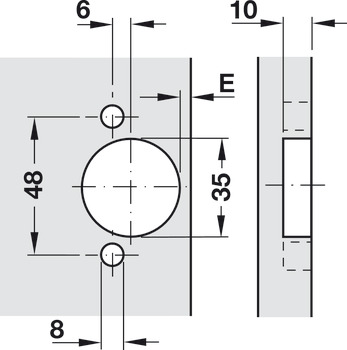

- Drilling pattern: 48/6
- Adjustment facility: Height adjusting screw, side and depth adjustment via slots
- Installation: Flap for screw fixing to cabinet

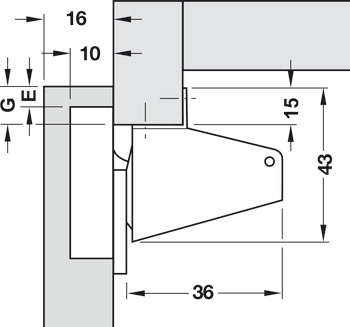

- Installation note: Example calculation of flap overlay:Overlay G = 4 mm + distance to cup E (4 mm) = 8 mm
- For lid weight: ≤1.5 kg
Order reference
- Order Hospa Ø 4.5 mm countersunk screws separately
The Swing Up 90D Hinge SF Cup Galvanised Steel (product code 356.35.815) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Steel, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 356.35.815 from Essential Furniture Fittings for fast UK delivery.
Product Specifications
- Product Code
- 356.35.815
- Material
- Steel
- Colour / Finish
- zinc plated
- Pack Quantity
- 1 Each
8 In stock
£3.06
Ex. VAT: £2.55
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 39 | £3.06 | — |
| 40 – 99 | £2.90 | Save 5% |
| 100 – 199 | £2.75 | Save 10% |
| 200+ | £2.45 | Save 20% |
- Technical Specifications
- Dimensions
| Adjustment facility | Height adjusting screw, side and depth adjustment via slots |
| Area of application | For straight flaps |
| Cup fixing | For screw fixing |
| For door material | Wood |
| For lid weight | ≤1.5 kg |
| Function | With automatic closing spring |
| Installation note | Example calculation of flap overlay:Overlay G = 4 mm + distance to cup E (4 mm) = 8 mm |
| Order reference | Order Hospa Ø 4.5 mm countersunk screws separately |
| Version | Minimum of 2 required per flap |
| Material | Steel |
| Colour/Finish | zinc plated |
| Opening angle | 95° |
| Installation | Flap for screw fixing to cabinet |
| Drilling pattern | 48/6 |
| For lid height | ≤315 mm |
| For lid thickness | 12 – 22 mm |
| For lid width | ≤ 450 mm |
| Cup drilling depth | 10 mm |
