Hinge Straight 50mm RH Steel BP x10 - Rolled Steel
Hinge Straight 50mm RH Steel BP x10 - Rolled Steel
- For door thickness and side panel thickness as required
- Total width40 mm
- Number of drill holes6
- Product typeFurniture Hinge
Area of application
- For butting, inset or overlay doors
- Crank type
- A
- Flange shape
- square
- Gap
- 1 mm
Order reference
- Order Hospa Ø 3.0 mm countersunk screws separately
The Hinge Straight 50mm RH Steel BP x10 (product code 331.08.502) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Rolled steel, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 331.08.502 from Essential Furniture Fittings for fast UK delivery.
Product Specifications
- Product Code
- 331.08.502
- Material
- Rolled steel
- Pack Quantity
- 1 Each
Out of Stock
Back in stock: 02/10/2026
£2.50
Ex. VAT: £2.08
This product is part of a range with 3 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £2.50 | — |
| 10+ | £2.22 | Save 11% |

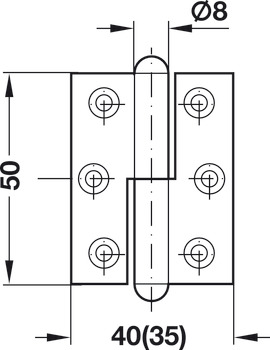

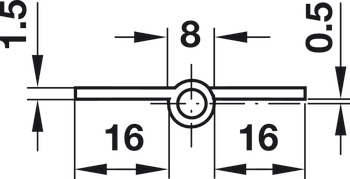

- Technical Specifications
- Dimensions
| Material | Rolled steel |
| Installation | For screw fixing |
| Length | 50 mm |
| Knuckle diameter | 8 mm |
| Flange thickness | 1.5 mm |
