Tiomos 95D Hinge Clk HO SF w SC NP - Cup: Steel, Hinge Arm: Zinc Alloy
Tiomos 95D Hinge Clk HO SF w SC NP - Cup: Steel, Hinge Arm: Zinc Alloy
Area of application
- For standard application
- Function: With soft closing mechanism
- Concealed hinge version: Half overlay
- Crank type: Cranked
- Door processing for assembly: With cup drilling
Material
- Cup: Steel, Hinge arm: Zinc alloy
- Opening angle: 95°
- Cup drilling depth: 12.60 mm
- Cup drilling Ø: 35 mm
- Cup fixing: For screw fixing
- Drilling pattern: 45/9.5
Order reference
- Order mounting plate and Hospa ⌀ 3.5 mm countersunk screws separatelyImage shows with hinge cover cap not included, to be ordered separately
The Tiomos 95D Hinge Clk HO SF w SC NP (product code 348.42.802) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Cup: Steel, Hinge arm: Zinc alloy, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 348.42.802 from Essential Furniture Fittings for fast UK delivery.
Product Specifications
- Supplier
- Hafele (UK) Ltd
- Product Code
- 348.42.802
- Material
- Cup: Steel, Hinge arm: Zinc alloy
- Pack Quantity
- 1 Each
477 In stock
£8.33
Ex. VAT: £6.94
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £8.33 | — |
| 5 – 9 | £7.91 | Save 5% |
| 10 – 24 | £7.50 | Save 10% |
| 25+ | £6.66 | Save 20% |

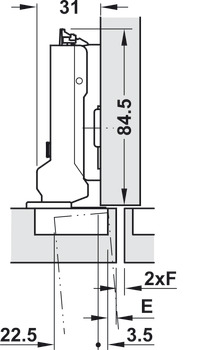

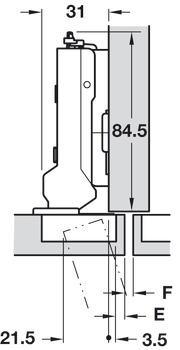

- Technical Specifications
- Dimensions
| Area of application | For standard application |
| Concealed hinge version | Half overlay |
| Crank type | Cranked |
| Cup drilling Ø | 35 mm |
| Cup fixing | For screw fixing |
| Door processing for assembly | With cup drilling |
| Function | With soft closing mechanism |
| Order reference | Order mounting plate and Hospa ⌀ 3.5 mm countersunk screws separatelyImage shows with hinge cover cap not included, to be ordered separately |
| Material | Cup: Steel, Hinge arm: Zinc alloy |
| Opening angle | 95° |
| Drilling pattern | 45/9.5 |
| Cup drilling depth | 12.60 mm |
