Tiomos 95D Hinge Clk INS SF w SC Night - Cup: Steel, Hinge Arm: Zinc Alloy
Tiomos 95D Hinge Clk INS SF w SC Night - Cup: Steel, Hinge Arm: Zinc Alloy
- For standard application⌀ 35 mm cup
- Up to 28 mm door thickness (for door thicknesses 29 mm and above, a trial fitting is recommended)
- Area of applicationFor standard application
- VersionWith soft closing mechanism
- Concealed hinge versionInset
- Crank typeHigh Cranked
- Door processing for assemblywith cup drilling
- Cup drilling Ø35 mm
- Cup fixingfor screw fixing
Order reference
- Order mounting plate and Hospa ⌀ 3.5 mm countersunk screws separately
The Tiomos 95D Hinge Clk INS SF w SC Night (product code 348.42.809) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Cup: Steel, Hinge arm: Zinc alloy, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 348.42.809 from Essential Furniture Fittings for fast UK delivery.
Product Specifications
- Supplier
- Hafele (UK) Ltd
- Product Code
- 348.42.809
- Material
- Cup: Steel, Hinge arm: Zinc alloy
- Pack Quantity
- 1 Each
285 In stock
£8.88
Ex. VAT: £7.40
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £8.88 | — |
| 5 – 9 | £8.44 | Save 5% |
| 10 – 24 | £7.99 | Save 10% |
| 25+ | £7.10 | Save 20% |
- Technical Specifications
- Dimensions
| Material | Cup: Steel, Hinge arm: Zinc alloy |
| Opening angle | 95° |

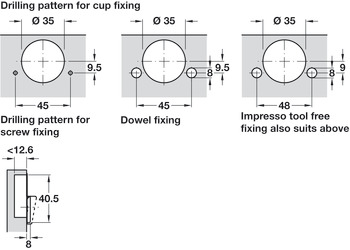

| Drilling pattern | 45/9.5 |
| Cup drilling depth | 12.6 mm |
