Nexix Tipmatic 100D Hinge Clk HO/TO Hos - Steel Nickel Plated
Nexix Tipmatic 100D Hinge Clk HO/TO Hos - Steel Nickel Plated
Area of application
- For standard applications
- Version: Click on
- Function: Without spring
- Concealed hinge version: Half overlay
- Crank type: Cranked
- Door processing for assembly: With cup drilling
Material
- Steel
- Colour/finish: nickel plated
- Opening angle: 100°
- Cup drilling depth: 11.80 mm
- Cup drilling Ø: 35 mm
- Cup fixing: For screw fixing

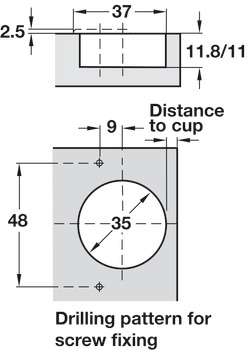

- Drilling pattern: 48/9
Order reference
- Order Hospa ⌀ 3.5 mm raised head countersunk screws separatelyTipmatic Plus compatible : The mechanical opening system for furniture without handles. A light touch is enough for doors to open as if by magic (please order Tipmatic Plus set for click on hinges separately)
The Nexix Tipmatic 100D Hinge Clk HO/TO Hos (product code 322.15.241) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Steel, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 322.15.241 from Essential Furniture Fittings for fast UK delivery.
Product Specifications
- Product Code
- 322.15.241
- Material
- Steel
- Colour / Finish
- nickel plated
- Pack Quantity
- 1 Each
119 In stock
£3.88
Ex. VAT: £3.23
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £3.88 | — |
| 10 – 29 | £3.67 | Save 5% |
| 30 – 49 | £3.48 | Save 10% |
| 50+ | £3.10 | Save 20% |
Required to complete this product
These items must be ordered separately.
- Technical Specifications
- Dimensions
| Area of application | For standard applications |
| Concealed hinge version | Half overlay |
| Crank type | Cranked |
| Cup drilling Ø | 35 mm |
| Cup fixing | For screw fixing |
| Door processing for assembly | With cup drilling |
| Function | Without spring |
| Order reference | Order Hospa ⌀ 3.5 mm raised head countersunk screws separatelyTipmatic Plus compatible : The mechanical opening system for furniture without handles. A light touch is enough for doors to open as if by magic (please order Tipmatic Plus set for click on hinges separately) |
| Version | Click on |
| Material | Steel |
| Colour/Finish | nickel plated |
| Opening angle | 100° |
| Drilling pattern | 48/9 |
| Cup drilling depth | 11.80 mm |
