Nexis 95/45D Hinge Clk Sprung Hos - Cup: Steel, Hinge Arm: Zinc Alloy Nickel Plated
Nexis 95/45D Hinge Clk Sprung Hos - Cup: Steel, Hinge Arm: Zinc Alloy Nickel Plated
Area of application
- For 45° angled applications
- Version: Click on
- Function: With spring
- Concealed hinge version: Angled application
- Crank type: High Cranked
- Door processing for assembly: With cup drilling
Material
- Cup: Steel, Hinge arm: Zinc alloy
- Colour/finish: nickel plated
- Opening angle: 95°
- Cup drilling depth: 11.80 mm
- Cup drilling Ø: 35 mm
- Cup fixing: For screw fixing

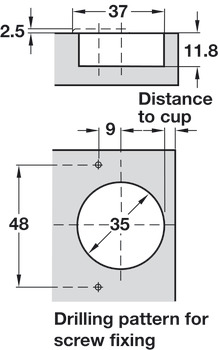

- Drilling pattern: 48/9
Order reference

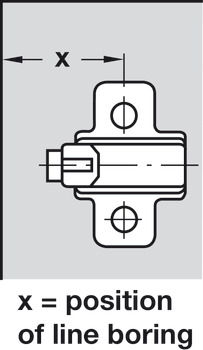

- Wide range of mounting plates available, please order separatelyOrder Hospa ⌀ 3.5 mm countersunk screws separately
The Nexis 95/45D Hinge Clk Sprung Hos (product code 322.29.531) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Cup: Steel, Hinge arm: Zinc alloy, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 322.29.531 from Essential Furniture Fittings for fast UK delivery.
Product Specifications
- Product Code
- 322.29.531
- Material
- Cup: Steel, Hinge arm: Zinc alloy
- Colour / Finish
- nickel plated
- Pack Quantity
- 1 Each
875 In stock
£10.24
Ex. VAT: £8.53
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £10.24 | — |
| 10 – 29 | £9.72 | Save 5% |
| 30 – 49 | £9.20 | Save 10% |
| 50+ | £8.18 | Save 20% |
Required to complete this product
These items must be ordered separately.
- Technical Specifications
- Dimensions
| Area of application | For 45° angled applications |
| Concealed hinge version | Angled application |
| Crank type | High Cranked |
| Cup drilling Ø | 35 mm |
| Cup fixing | For screw fixing |
| Door processing for assembly | With cup drilling |
| Function | With spring |
| Order reference | Wide range of mounting plates available, please order separatelyOrder Hospa ⌀ 3.5 mm countersunk screws separately |
| Version | Click on |
| Material | Cup: Steel, Hinge arm: Zinc alloy |
| Colour/Finish | nickel plated |
| Opening angle | 95° |
| Drilling pattern | 48/9 |
| Cup drilling depth | 11.80 mm |
