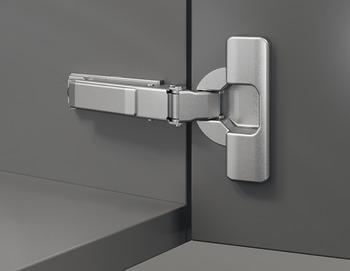

110D Concealed Hinge FO SF NP - Steel Nickel Plated
110D Concealed Hinge FO SF NP - Steel Nickel Plated
Area of application
- For standard applications
- Function: With automatic closing spring, Without soft closing mechanism
- Concealed hinge version: Full overlay
- Crank type: Straight
- For door material: Wood
- Door processing for assembly: With cup drilling
Material
- Steel
- Colour/finish: nickel plated
- Opening angle: 110°
- Cup drilling depth: 11 mm
- Cup fixing: For screw fixing

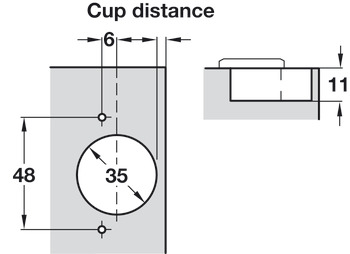

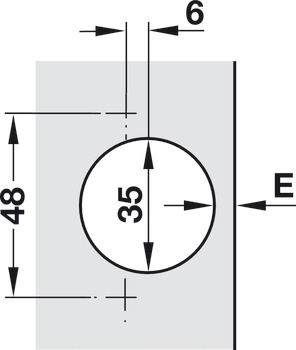

- Drilling pattern: 48/6
- Adjustment facility: Side adjustment -1.5/+4.5 mm, Height adjustment ±2 mm, depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5/+2.8 mm
- Installation: Door on cabinet with slide-on system A or quick fixing system SM
Order reference
- Mounting plate to be ordered separately
The 110D Concealed Hinge FO SF NP (product code 329.17.600) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Steel, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 329.17.600 from Essential Furniture Fittings for fast UK delivery.
Product Specifications
- Product Code
- 329.17.600
- Material
- Steel
- Colour / Finish
- nickel plated
- Pack Quantity
- 1 Each
39 In stock
£2.09
Ex. VAT: £1.74
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £2.09 | — |
| 10 – 24 | £1.98 | Save 5% |
| 25 – 49 | £1.88 | Save 10% |
| 50+ | £1.67 | Save 20% |
- Technical Specifications
- Dimensions
| Adjustment facility | Side adjustment -1.5/+4.5 mm, Height adjustment ±2 mm, depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5/+2.8 mm |
| Area of application | For standard applications |
| Concealed hinge version | Full overlay |
| Crank type | Straight |
| Cup fixing | For screw fixing |
| Door processing for assembly | With cup drilling |
| For door material | Wood |
| Function | With automatic closing spring, Without soft closing mechanism |
| Order reference | Mounting plate to be ordered separately |
| Material | Steel |
| Colour/Finish | nickel plated |
| Opening angle | 110° |
| Installation | Door on cabinet with slide-on system A or quick fixing system SM |
| Drilling pattern | 48/6 |
| Cup drilling depth | 11 mm |
