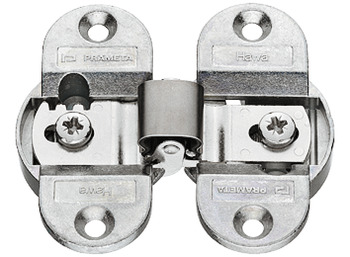

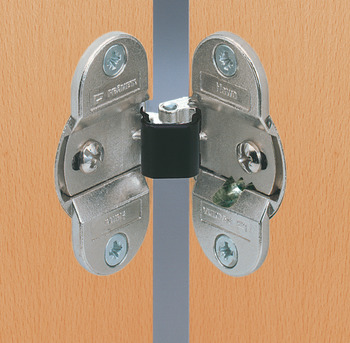

180D Hinge 13mm for Folding Drs SF Zinc Alloy NP Cup: Nickel Plated, Hinge Arm: Zinc Plated
180D Hinge 13mm for Folding Drs SF Zinc Alloy NP Cup: Nickel Plated, Hinge Arm: Zinc Plated
Area of application
- For folding doors
- Version: With spring: Extending and folding spring force stabilised, With adjustable pivot offset
- For door material: Wood
- Door processing for assembly: Processing not required
Material
- Zinc alloy
- Colour/finish: Cup: nickel plated, Hinge arm: zinc plated
- Opening angle: 180°
- For door thickness: ≥13 mm
- For door width: ≤600 mm

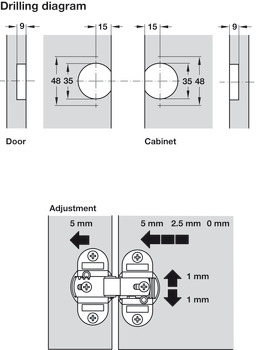

- Cup drilling depth: 9 mm
- Cup drilling Ø: 35 mm
- Cup fixing: For screw fixing
- Adjustment facility: Side adjustment 0/+5 mm, Height adjustment ±1 mm, Adjustable gap 0–10 mm (factory setting 3 mm gap, pivot point 1.5 mm off centre)
- Installation: For screw fixing
- Installation note: Plan number and position of folding door hinges in accordance with the number and position of the door hingesProvide spacer with gap > 0 mm
Order reference
- Order Hospa Ø 4.0 mm countersunk screws separately
The 180D Hinge 13mm for Folding Drs SF Zinc Alloy NP (product code 343.91.600) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Zinc alloy, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 343.91.600 from Essential Furniture Fittings for fast UK delivery.
Product Specifications
- Supplier
- Hafele (UK) Ltd
- Product Code
- 343.91.600
- Material
- Zinc alloy
- Colour / Finish
- Cup: nickel plated, Hinge arm: zinc plated
- Pack Quantity
- 1 Each
513 In stock
£25.73
Ex. VAT: £21.44
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 1 | £25.73 | — |
| 2 – 4 | £24.44 | Save 5% |
| 5 – 9 | £23.16 | Save 10% |
| 10+ | £20.58 | Save 20% |
- Technical Specifications
- Dimensions
| Adjustment facility | Side adjustment 0/+5 mm, Height adjustment ±1 mm, Adjustable gap 0–10 mm (factory setting 3 mm gap, pivot point 1.5 mm off centre) |
| Area of application | For folding doors |
| Cup drilling Ø | 35 mm |
| Cup fixing | For screw fixing |
| Door processing for assembly | Processing not required |
| For door material | Wood |
| Installation note | Plan number and position of folding door hinges in accordance with the number and position of the door hingesProvide spacer with gap > 0 mm |
| Order reference | Order Hospa Ø 4.0 mm countersunk screws separately |
| Version | With spring: Extending and folding spring force stabilised, With adjustable pivot offset |
| Material | Zinc alloy |
| Colour/Finish | Cup: nickel plated, Hinge arm: zinc plated |
| Opening angle | 180° |
| Installation | For screw fixing |
| For door thickness | ≥13 mm |
| For door width | ≤600 mm |
| Cup drilling depth | 9 mm |
