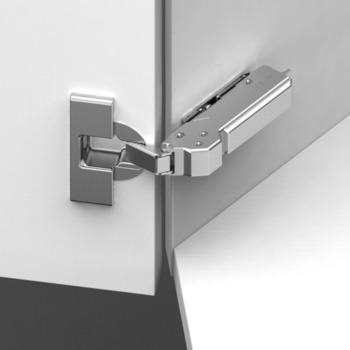

Tiomos 110/45D Hinge Clk FO SF wo SC - Cup: Steel, Hinge Arm: Zinc Alloy Nickel Plated
Tiomos 110/45D Hinge Clk FO SF wo SC - Cup: Steel, Hinge Arm: Zinc Alloy Nickel Plated
- For 30° angle applications
- Up to 24 mm (for door thicknesses 22 mm and above, a trial fitting is recommended)
- Concealed hinge versionBlind corner application
- Crank typeCranked
- For door materialWood
- Door processing for assemblywith cup drilling
- Corner applications45°
- Cup drilling Ø35 mm
- Adjustment facilitySide adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2 – 3 mm
- 1488
- Additional information attributes

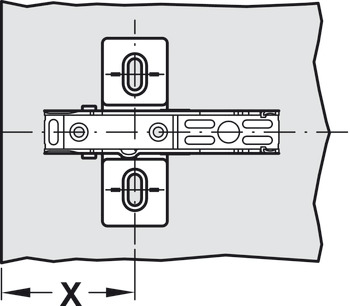

- Dimensions in drawings and tables are calculated using factory settings and for mounting plate distance 2 mm
The Tiomos 110/45D Hinge Clk FO SF wo SC (product code 348.35.605) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Cup: Steel, Hinge arm: Zinc alloy, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 348.35.605 from Essential Furniture Fittings for fast UK delivery.
Product Specifications
- Supplier
- Hafele (UK) Ltd
- Product Code
- 348.35.605
- Material
- Cup: Steel, Hinge arm: Zinc alloy
- Colour / Finish
- nickel plated
- Pack Quantity
- 1 Each
93 In stock
£13.88
Ex. VAT: £11.57
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £13.88 | — |
| 5 – 9 | £13.19 | Save 5% |
| 10 – 24 | £12.49 | Save 10% |
| 25+ | £11.10 | Save 20% |
- Technical Specifications
- Dimensions
| Material | Cup: Steel, Hinge arm: Zinc alloy |
| Colour/Finish | nickel plated |
| Opening angle | 110° |
| Drilling pattern | 45/9.5 |
| Cup drilling depth | 12.6 mm |
