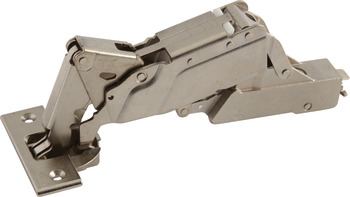

Tiomos 155D Hinge Clk HO SF w SC NP - Cup: Zinc Alloy, Hinge Arm: Steel
Tiomos 155D Hinge Clk HO SF w SC NP - Cup: Zinc Alloy, Hinge Arm: Steel
Area of application
- Zero protrusion makes this ideal for cabinets with internal drawer boxes or pull-out shelves
- Version: With finger protection
- Function: With soft closing mechanism
- Model No.: F028138563217
- Concealed hinge version: Half overlay mounting/twin mounting
- Crank type: Cranked
- For door material: Wood
- Door processing for assembly: With cup drilling
Material
- Cup: Zinc alloy, Hinge arm: Steel
- Opening angle: 155°
- Cup drilling depth: 10 mm
- Cup drilling Ø: 35 mm
- Cup fixing: For screw fixing
- Drilling pattern: 45/9.5
- Adjustment facility: Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2/+3 mm, (height adjustment depending on mounting plate)
- Installation: Door on cabinet without tools with clip system
Order reference
- Order Hospa Ø 3.5 mm countersunk screws separatelyImage shows with hinge cover cap not included, to be ordered separately
The Tiomos 155D Hinge Clk HO SF w SC NP (product code 348.32.802) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Cup: Zinc alloy, Hinge arm: Steel, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 348.32.802 from Essential Furniture Fittings for fast UK delivery.
Product Specifications
- Supplier
- Hafele (UK) Ltd
- Product Code
- 348.32.802
- Material
- Cup: Zinc alloy, Hinge arm: Steel
- Pack Quantity
- 1 Each
51 In stock
£12.25
Ex. VAT: £10.21
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £12.25 | — |
| 5 – 9 | £11.64 | Save 5% |
| 10 – 24 | £11.03 | Save 10% |
| 25+ | £9.80 | Save 20% |
- Technical Specifications
- Dimensions
| Adjustment facility | Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2/+3 mm, (height adjustment depending on mounting plate) |
| Area of application | Zero protrusion makes this ideal for cabinets with internal drawer boxes or pull-out shelves |
| Concealed hinge version | Half overlay mounting/twin mounting |
| Crank type | Cranked |
| Cup drilling Ø | 35 mm |
| Cup fixing | For screw fixing |
| Door processing for assembly | With cup drilling |
| For door material | Wood |
| Function | With soft closing mechanism |
| Model No. | F028138563217 |
| Order reference | Order Hospa Ø 3.5 mm countersunk screws separatelyImage shows with hinge cover cap not included, to be ordered separately |
| Version | With finger protection |
| Material | Cup: Zinc alloy, Hinge arm: Steel |
| Opening angle | 155° |
| Installation | Door on cabinet without tools with clip system |
| Drilling pattern | 45/9.5 |
| Cup drilling depth | 10 mm |
