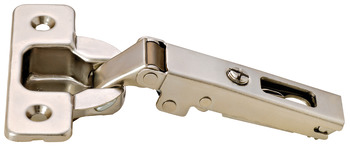

Duomatic 110D Hinge Qck SF FO Hos SNP - Steel
Duomatic 110D Hinge Qck SF FO Hos SNP - Steel
Area of application
- For opening doors without handles
- Function: With automatic opening mechanism (Push)
- Concealed hinge version: Full overlay
- Crank type: Straight
- For door material: Wood
- Door processing for assembly: With cup drilling
Material
- Steel
- Opening angle: 110°
- Cup drilling depth: 11 mm
- Cup drilling Ø: 35 mm
- Cup fixing: For screw fixing
- Drilling pattern: 48/6
- Adjustment facility: Side adjustment -1.5/+4.5 mm, Height adjustment ±2 mm, depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5/+2.8 mm
- Installation: Quick fitting hinge arm
Order reference
- Please order mounting plate 329.71.513, door catch and accessories seperatelyOrder Hospa Ø 3.5 mm flat head screws separately
The Duomatic 110D Hinge Qck SF FO Hos SNP (product code 329.17.900) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Steel, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 329.17.900 from Essential Furniture Fittings for fast UK delivery.
Product Specifications
- Supplier
- Hafele (UK) Ltd
- Product Code
- 329.17.900
- Material
- Steel
- Pack Quantity
- 1 Each
876 In stock
£8.03
Ex. VAT: £6.69
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £8.03 | — |
| 10 – 24 | £7.63 | Save 5% |
| 25 – 49 | £7.22 | Save 10% |
| 50+ | £6.43 | Save 20% |
Required to complete this product
These items must be ordered separately.
- Technical Specifications
- Dimensions
| Adjustment facility | Side adjustment -1.5/+4.5 mm, Height adjustment ±2 mm, depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5/+2.8 mm |
| Area of application | For opening doors without handles |
| Concealed hinge version | Full overlay |
| Crank type | Straight |
| Cup drilling Ø | 35 mm |
| Cup fixing | For screw fixing |
| Door processing for assembly | With cup drilling |
| For door material | Wood |
| Function | With automatic opening mechanism (Push) |
| Order reference | Please order mounting plate 329.71.513, door catch and accessories seperatelyOrder Hospa Ø 3.5 mm flat head screws separately |
| Material | Steel |
| Opening angle | 110° |
| Installation | Quick fitting hinge arm |
| Drilling pattern | 48/6 |
| Cup drilling depth | 11 mm |
