Hawa Junior 80B Mod FitSet 1Dr Bolt Long
Hawa Junior 80B Mod FitSet 1Dr Bolt Long
- Junior 80/B is a vertically adjustable low headroom sliding door fittingIdeal for pocket door solutionsEasier installation due to a clever new suspension mechanism - click and clear
- ModelJunior 80/B
- Soft closing mechanismWithout soft and self closing mechanism, with track buffers on both sides
- For door weight≤80 kg
- For door width≤3,000 mm
- For door materialWood
- Controller installation optionsCeiling installation, Wall mounting, Integrated ceiling installation
- For door thickness35 – 80 mm
- Number of doors1
Suitable for
- Minimum installation height
- Number of doors per system max.
- 1 to 2
- For door height
- ≤4,000 mm
- Door processing
- With recess
Standard
- Certified in compliance with EN 1527:2013
- Classification in compliance with EN 1527
- -|6|2|-|1|0|-|1|3
Order reference
- Tracks, soft and self close mechanisms, accessories and fixings to be ordered separately
Configuration required
Configuration required
Configuration required
- Additional information attributes
- Available with 20 mm longer bolt version which allows the track to be covered from below with removable ceiling elements
The Hawa Junior 80B Mod FitSet 1Dr Bolt Long (product code 940.80.118) is a Hafele engineered product built for dependable, precise performance in everyday use.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 940.80.118 from Essential Furniture Fittings for fast UK delivery.
Product Specifications
- Product Code
- 940.80.118
- Pack Quantity
- 1 Each
4 In stock
£510.77
Ex. VAT: £425.64
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 1 | £510.77 | — |
| 2 – 3 | £483.88 | Save 5% |
| 4+ | £430.12 | Save 16% |
- Technical Specifications

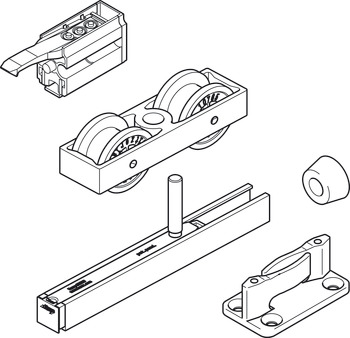

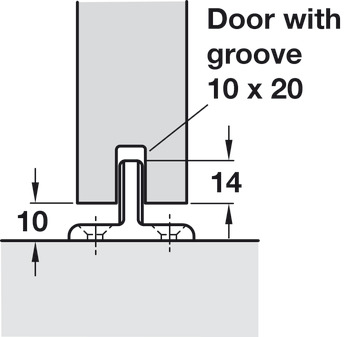

| Supplied with | Fitting includes 2 x Track stopper, for adjustable mounting in top track, zinc alloy, 2 x Hawa-Junior 80/B modified trolley hanger, sleeve bearing mounted Ø 34 mm high-grade polyamide tandem rollers, with 25 x 215 x 22 mm retainer profile and suspension plate, fixings included, 1 x Guide, rattle proof, for screw mounting to floor, black plastic, 24 x 60 x 36 mm, 1 x Rubber buffer, Ø 19 x 10 mm, for screw fixing |

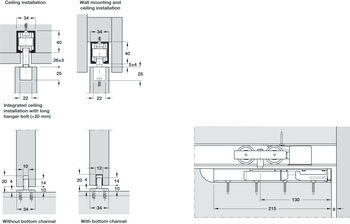

| Installation | drawing reference 24484This version of HAWA-Junior 80/B, compared to the standard HAWA-Junior 80/B has been modified with enhanced featuresLow headroom applications: Around 1 mm gap between lower side of top track and top side of sliding door is now possible for a more pleasing appearanceHeight can easily be adjusted from the leading edge without needing to remove the suspension unitVery easy and efficient installation due to pre-fitted hanger bolt, integrated wedge mechanism and cover cap; Suspension with recessed support profile and installation-friendly suspension carriage with integrated metal cover cap |
