Cylinder CamLock w Trap D19mm H1 Dir.B - Housing: Zinc Alloycylinder: Brass Nickel Plated, Matt
Cylinder CamLock w Trap D19mm H1 Dir.B - Housing: Zinc Alloycylinder: Brass Nickel Plated, Matt
- Closure directions can be altered by re-positioning the cam, but always moving in the same direction:Closure direction A can be altered to D, F or GClosure direction B can be altered to C, E or H
- Locking systemStandard profile
- For door thickness≤ 21 mm
- Version
- Straight cam
- Cylinder Ø
- 19 mm
- Type of locking
- with 5 pin tumblers
- with key
- Yes
- Additional information attributes
- Master key and general master key systems: Please discuss with our sales staff before ordering, state closure direction required
The Cylinder CamLock w Trap D19mm H1 Dir.B (product code 235.03.211) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Housing: Zinc alloycylinder: Brass, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 235.03.211 from Essential Furniture Fittings for fast UK delivery.
Product Specifications
- Product Code
- 235.03.211
- Material
- Housing: Zinc alloycylinder: Brass
- Colour / Finish
- Nickel plated, Matt
- Pack Quantity
- 1 Each
48 In stock
£40.25
Ex. VAT: £33.54
This product is part of a range with 4 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 1 | £40.25 | — |
| 2 – 3 | £38.14 | Save 5% |
| 4+ | £33.90 | Save 16% |
- Technical Specifications

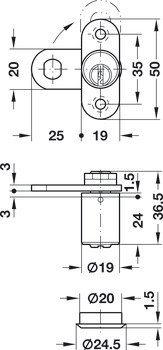

- Dimensions
| Material | Housing: Zinc alloycylinder: Brass |
| Colour/Finish | Nickel plated, Matt |
| Closure travel | 90° (reversible, with key trap) |
| Supplied with | 1 cam lock2 keys1 cylinder rosette1 cam (pre-mounted)2 fixing nuts (pre-mounted)Security pass and locking map with master key system |
| Installation | For screw fixing with screw-on plate |
| Cylinder shape | round cylinder |
| Diameter | 19 mm |
| Cylinder length | 24 mm |
