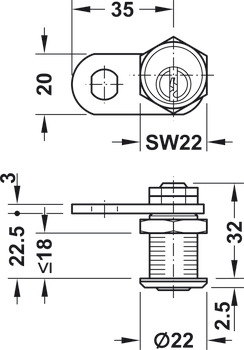

Cylinder Cam Lock 22mm PNP H1 Dir.B - Brass Nickel Plated, Polished
Cylinder Cam Lock 22mm PNP H1 Dir.B - Brass Nickel Plated, Polished
- With key trap; key can only be removed in locked position
- With 5 pairs of pins = 10,000 possible key changesClosure directions can be altered by re-positioning the cam, but always moving in the same direction:Closure direction A can be altered to D, F or GClosure direction B can be altered to C, E or H
- Locking systemStandard profile
- For door thickness≤ 18 mm
- Version
- Straight locking cam
- Type of locking
- with 5 pin tumblers
Order reference
- Order spacer bushes and anti-twist washer separately
The Cylinder Cam Lock 22mm PNP H1 Dir.B (product code 235.91.826) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Brass, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 235.91.826 from Essential Furniture Fittings for fast UK delivery.
Product Specifications
- Product Code
- 235.91.826
- Material
- Brass
- Colour / Finish
- Nickel plated, Polished
- Pack Quantity
- 1 Each
5 In stock
£32.77
Ex. VAT: £27.31
This product is part of a range with 7 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 1 | £32.77 | — |
| 2 – 3 | £31.04 | Save 5% |
| 4+ | £27.60 | Save 16% |
- Technical Specifications
| Material | Brass |
| Colour/Finish | Nickel plated, Polished |
| Threading | length L18 mm |
| Closure travel | 90° (reversible, with key trap) |
| Supplied with | 1 Cam lock2 Keys1 Locking cam3 Nuts1 washerSecurity pass and locking plan with locking systems |

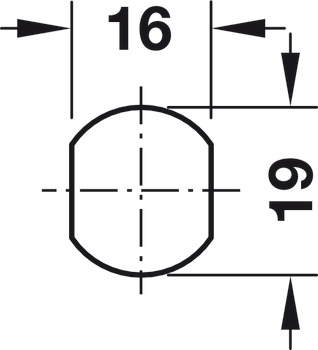

| Installation | For screw fixing with hexagonal nut(aperture pattern 19 x 16 mm) |
