Cylinder Cam Lock 22mm Differ Dir.1 - Zinc Alloy
Cylinder Cam Lock 22mm Differ Dir.1 - Zinc Alloy
- 90° with key trap; key can only be removed in locked position180° without key trap; key can be removed in locked and unlocked positionClosure directions can be altered by re-positioning the cam, but always moving in the same direction:Closure direction A can be altered to D, F or GClosure direction B can be altered to C, E or HClosure direction 1 can be altered to 2 - 8
- Locking systemStandard profile
- For door thickness≥ 0.8 – ≤ 2.5 mm
Area of application
- For metal furniture
- Version
- With fixed plate cylinderWith straight locking cam
- Type of locking
- with 6 plate levers
- with key
- Yes
- Additional information attributes
- No master key possible
The Cylinder Cam Lock 22mm Differ Dir.1 (product code 235.72.460) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Zinc alloy, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 235.72.460 from Essential Furniture Fittings for fast UK delivery.
Product Specifications
- Product Code
- 235.72.460
- Material
- Zinc alloy
- Pack Quantity
- 10 Each
Out of Stock
Back in stock: 02/10/2026
£11.20
Ex. VAT: £9.33
Sold in packs of 10 — £111.97 per pack
This product is part of a range with 3 options. Select an option to filter, then choose the matching variant.
| Quantity | Pack Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 0 packs | £106.37 | Save 5% |
| 1 – 0 packs | £100.78 | Save 10% |
| 1+ packs | £89.58 | Save 20% |
- Technical Specifications
| Material | Zinc alloy |
| Supplied with | 1 Cam lockAccessories: 2x keys, 1x cam lock, 1x nut and 1x cam(pre-mounted) |

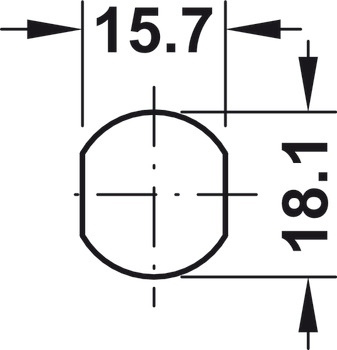

| Installation | For screw fixing with hexagon nut (Hole pattern 18.1 x 15.7 mm) |
| Cylinder shape | round cylinder |
