Tectus TE340 3D FR 180D Hinge MB - Aluminium And Steel
Tectus TE340 3D FR 180D Hinge MB - Aluminium And Steel
- FD 30 fire ratedIntumescent built into hinge bodyMaintenance free friction bearingsSuitable for left or right hand applications
- Flange shaperounded
Area of application

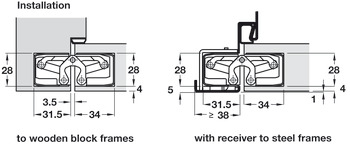

- For wooden, steel or aluminium framesFor flush doors
- For frame type
- Metal frame, For wooden frame
- Door thickness
- ≥30 mm
- Router bit Ø
- 24 mm
- Thrust ring Ø
- 30 mm
- Adjustment facility
- 3D, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1 mm
- Grade
- 3|7|4|1|1|4|0|11
The Tectus TE340 3D FR 180D Hinge MB (product code 924.19.043) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Aluminium and steel, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 924.19.043 from Essential Furniture Fittings for fast UK delivery.
Product Specifications
- Product Code
- 924.19.043
- Material
- Aluminium and steel
- Pack Quantity
- 1 Each
Out of Stock
Back in stock: 02/11/2026
£187.94
Ex. VAT: £156.62
This product is part of a range with 7 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 2 | £187.94 | — |
| 3+ | £167.06 | Save 11% |
- Technical Specifications

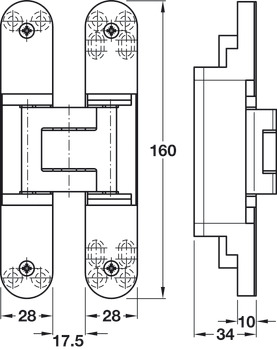

- Dimensions
| Material | Aluminium and steel |
| Opening angle | 180 ° |
| Supplied with | Fixings |
| Flange width | 28 mm |
| Flange height | 160 mm |
