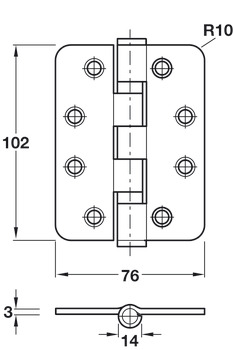

Butt Hinge 2BB Rad 102x76mm 304 PSS - Stainless Steel
Butt Hinge 2BB Rad 102x76mm 304 PSS - Stainless Steel
- ANSI hole patternGrade 13 BS EN 1935Two high quality ball race joint bearings
- MountingFor DIN left and DIN right hand use
- Model series
- Butt hinge
Area of application
- For wooden or metal framesfor flush wooden or metal interior doors
- For door type
- Wooden door leaf, metal door
- For frame type
- Wooden frame, Metal frame
- Max. door weight for 2 hinges
- 120 kg
- Routing depth
- 3 mm
- Bearing type
- With fixed pin, Knuckle with two ball bearings
Standard
- Certified in compliance with EN 1935:2002
- Grade
- 4|7|6|1|1|4|0|13
Order reference
- Fixing screws for wooden frames and doors suppliedPlease order fixing screws for metal frames and doors separately
The Butt Hinge 2BB Rad 102x76mm 304 PSS (product code 926.90.141) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Stainless steel, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 926.90.141 from Essential Furniture Fittings for fast UK delivery.
Product Specifications
- Product Code
- 926.90.141
- Material
- Stainless steel
- Pack Quantity
- 1 Each
Discontinued
£7.07
Ex. VAT: £5.89
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1+ | £7.07 | — |
This product has been discontinued.
- Technical Specifications
- Dimensions
| Material | Stainless steel |
| Supplied with | Fixings |
| Knuckle diameter | 14 mm |
| Flange thickness | 3 mm |
