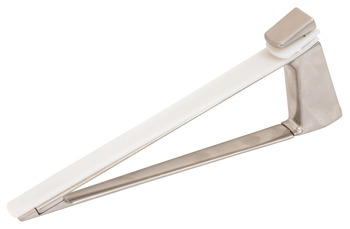

Shelf Clamp Support 4-45mm Screw Stainless Steel Eff - Zinc Alloy
Shelf Clamp Support 4-45mm Screw Stainless Steel Eff - Zinc Alloy
- Shelf depth: min 170 mm, max. 210Spacing between brackets: max. 700 mm

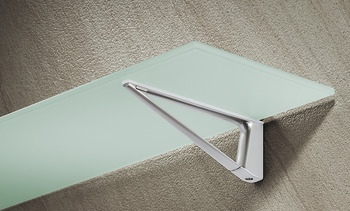

- Area of applicationfor wooden and glass shelves
- For shelf thickness4 – 45 mm

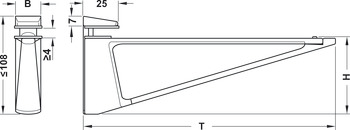

- Dim. (W x D x H)18 x 180 x 55 mm
- 17 kg
- Note on load bearing capacity
- 17 kg per piece, tested to DIN EN 16337:2013-08 with 1.7 kg plate for impact test with shelf size 1,000 x 210 x 38 mm,i.e. 34 kg load bearing capacity with surface load and 2 supports
- Shelf depth: min 170 mm, max. 210Spacing between brackets: max. 700 mm
Area of application
- For glass and wooden shelves
- Distance between bases
- 700 mm
- Additional information attributes
- max. distance between two shelf supports: 700 mm.The specified load bearing capacity applies only with proper and reliable attachment to the wall.
The Shelf Clamp Support 4-45mm Screw Stainless Steel Eff (product code 287.76.010) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Zinc alloy, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 287.76.010 from Essential Furniture Fittings for fast UK delivery.
Product Specifications
- Product Code
- 287.76.010
- Material
- Zinc alloy
- Pack Quantity
- 1 Each
21 In stock
£61.30
Ex. VAT: £51.08
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 1 | £61.30 | — |
| 2 – 3 | £58.07 | Save 5% |
| 4+ | £51.62 | Save 16% |
- Technical Specifications
| Material | Zinc alloy |
| Load bearing capacity | 17 kg |
| Installation | For screw fixing to support element Shelf is secured by tightening with clamps; reference |
