Con Shelf Support 12mm Press Wall - Steel Zinc Plated
Con Shelf Support 12mm Press Wall - Steel Zinc Plated

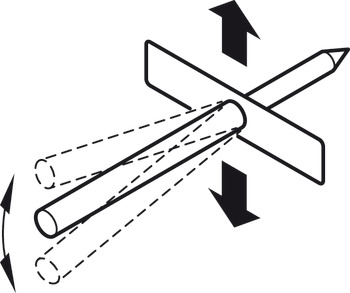

- To insert the shelf support, drill out the board as shown in the drawing right Level the shelf by laying on the shelf supports and adjusting the eccentric screw before finally fixing the shelf in positionAdjustable in height and inclination:Size 12 mm: ±1 mmSize 14 mm: ±2 mm
- VersionWith screw-on plate and wall plug fixing
Area of application
- For installation into masonry walls
- Mill out the lateral hole for holding the support bolt with an elongated hole drilling machine or chain mortiser.Take the eccentric adjusting range into consideration when milling out the holder for the screw-on plate.
Order reference
- Ø 5.0 mm Hospa screws required, order separately
Configuration required
- Additional information attributes
- max. distance between two shelf supports: 700 mm
The Con Shelf Support 12mm Press Wall (product code 283.32.050) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Steel, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 283.32.050 from Essential Furniture Fittings for fast UK delivery.
Product Specifications
- Product Code
- 283.32.050
- Material
- Steel
- Colour / Finish
- zinc plated
- Pack Quantity
- 1 Each
13 In stock
£10.15
Ex. VAT: £8.46
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £10.15 | — |
| 10 – 19 | £9.65 | Save 5% |
| 20 – 39 | £9.13 | Save 10% |
| 40+ | £8.12 | Save 20% |
- Technical Specifications
| Material | Steel |
| Colour/Finish | zinc plated |
| Supplied with | 1 Supporting pin with mounting plate2 Pre-mounted eccentric sleeves1 S8 R80 Fisher wall plug |
| Installation | :- Drill lateral hole for accommodating support bolt with elongated hole drilling machine or chain cutter.- Take eccentric adjusting range into consideration when milling recess for screw-on plate.; For screw fixing to support elementFor mounting in drilled hole in shelf; reference |
