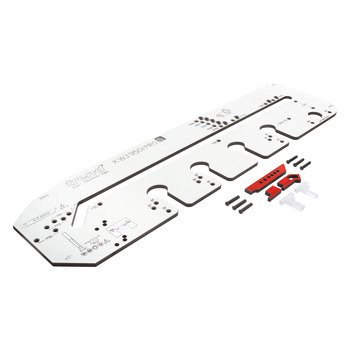

Trend Pro Multi Material WithT Jig 950mm
Product Code: 000.00.556
Trend Pro Multi Material WithT Jig 950mm
Product Code: 000.00.556
2 In stock
£340.06
Ex. VAT: £283.38
- Products Description
- Technical Specifications
Product Category: Worktop Jig
Area of application: A universal worktop jig for routing mitre joints in laminated, timber and compact laminate surfaces. Features 3 mm, 10 mm and 35 mm inset options, and innovative front edge alignment technology for scribed, out-of-square and non-standard worktops
Version: 400 mm radius for breakfast bar and peninsula trimmingR100 mm, R40 mm and 45° corners for edge finishing90° straight cuts for accurate skimming and trimming35 mm hinge / ¾” BSP recess for surface-mount monobloc tap and concealed hinge installationFront edge alignment technology accurately positions the jig directly to the start of the mitre joint to accommodate any worktop widthNarrow Inset T-Gauges create 3 mm and 10 mm insets quickly and easily. Perfect for square edged and modern bullnose worktops; narrow insets give a cleaner aesthetic, prevent cutter wear, and improve cordless router runtimeMale cut-line positioning devices allow the jig to be positioned directly to the male cut line and remove the need for complex length, angle and offset calculations. Ideal for trapped and out-of-square installationsPreset connector bolt recesses accommodate all standard worktop bolt sizes, including Zipbolt and Unika ‘Slimline’ connection bolts8.65 mm marking gauge helps to perfectly position the jig for peninsula, radius and 45° corner finishingCNC-machined compact grade HPL
Suitable for: Indexed backsets for 600, 610, 616, 620, 635, 700, 900 and 950 mm worktops for standard 90º installations8 mm radius gauge ensures worktops are suitable for a 10 mm narrow inset
Area of application: A universal worktop jig for routing mitre joints in laminated, timber and compact laminate surfaces. Features 3 mm, 10 mm and 35 mm inset options, and innovative front edge alignment technology for scribed, out-of-square and non-standard worktops
Version: 400 mm radius for breakfast bar and peninsula trimmingR100 mm, R40 mm and 45° corners for edge finishing90° straight cuts for accurate skimming and trimming35 mm hinge / ¾” BSP recess for surface-mount monobloc tap and concealed hinge installationFront edge alignment technology accurately positions the jig directly to the start of the mitre joint to accommodate any worktop widthNarrow Inset T-Gauges create 3 mm and 10 mm insets quickly and easily. Perfect for square edged and modern bullnose worktops; narrow insets give a cleaner aesthetic, prevent cutter wear, and improve cordless router runtimeMale cut-line positioning devices allow the jig to be positioned directly to the male cut line and remove the need for complex length, angle and offset calculations. Ideal for trapped and out-of-square installationsPreset connector bolt recesses accommodate all standard worktop bolt sizes, including Zipbolt and Unika ‘Slimline’ connection bolts8.65 mm marking gauge helps to perfectly position the jig for peninsula, radius and 45° corner finishingCNC-machined compact grade HPL
Suitable for: Indexed backsets for 600, 610, 616, 620, 635, 700, 900 and 950 mm worktops for standard 90º installations8 mm radius gauge ensures worktops are suitable for a 10 mm narrow inset
| Area of application | A universal worktop jig for routing mitre joints in laminated, timber and compact laminate surfaces. Features 3 mm, 10 mm and 35 mm inset options, and innovative front edge alignment technology for scribed, out-of-square and non-standard worktops |
| Product Category | Worktop Jig |
| Suitable for | Indexed backsets for 600, 610, 616, 620, 635, 700, 900 and 950 mm worktops for standard 90º installations8 mm radius gauge ensures worktops are suitable for a 10 mm narrow inset |
| Version | 400 mm radius for breakfast bar and peninsula trimmingR100 mm, R40 mm and 45° corners for edge finishing90° straight cuts for accurate skimming and trimming35 mm hinge / ¾” BSP recess for surface-mount monobloc tap and concealed hinge installationFront edge alignment technology accurately positions the jig directly to the start of the mitre joint to accommodate any worktop widthNarrow Inset T-Gauges create 3 mm and 10 mm insets quickly and easily. Perfect for square edged and modern bullnose worktops; narrow insets give a cleaner aesthetic, prevent cutter wear, and improve cordless router runtimeMale cut-line positioning devices allow the jig to be positioned directly to the male cut line and remove the need for complex length, angle and offset calculations. Ideal for trapped and out-of-square installationsPreset connector bolt recesses accommodate all standard worktop bolt sizes, including Zipbolt and Unika ‘Slimline’ connection bolts8.65 mm marking gauge helps to perfectly position the jig for peninsula, radius and 45° corner finishingCNC-machined compact grade HPL |
