Hawa 220 Planfront 40/70 FitSet 1Dr LH
Product Code: 407.74.338
Hawa 220 Planfront 40/70 FitSet 1Dr LH
Product Code: 407.74.338
Out of Stock
Back in stock: 28/10/2026
£2,805.43
Ex. VAT: £2,337.86
This product is part of a range with 2 options. Select to view the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1+ | £2,805.43 | — |
- Products Description
- Technical Specifications
- Dimensions
For door thickness: 19 – 45 mm
For door width: 400 – 1,500 mm
For door weight: ≤70 kg
Running gear guided by: Ball bearing
Cabinet version: With 1 left door wing
Area of application: With 1 left door wing
Material/finish: Aluminium
Adjustment facility: Height adjustment ± 5 mm
Installation: Screw-on running gear
Door processing: For screw fixing
Set: Set with tracks
Order reference: Order Hospa Ø 5.0 mm countersunk screws separately

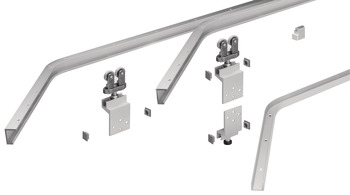

Supplied with: 2x Top track, pre-drilled for screw mounting, precision radius curved2x Trolley hanger, with back fixing plate vertical and horizontal adjustment1x Bottom guide, with back fixing plate adjustable roller guide, roller trim caps1x Bottom channel, pre-drilled for screw mounting, precision radius curved
For door width: 400 – 1,500 mm
For door weight: ≤70 kg
Running gear guided by: Ball bearing
Cabinet version: With 1 left door wing
Area of application: With 1 left door wing
Material/finish: Aluminium
Adjustment facility: Height adjustment ± 5 mm
Installation: Screw-on running gear
Door processing: For screw fixing
Set: Set with tracks
Order reference: Order Hospa Ø 5.0 mm countersunk screws separately
Supplied with: 2x Top track, pre-drilled for screw mounting, precision radius curved2x Trolley hanger, with back fixing plate vertical and horizontal adjustment1x Bottom guide, with back fixing plate adjustable roller guide, roller trim caps1x Bottom channel, pre-drilled for screw mounting, precision radius curved
| Adjustment facility | Height adjustment ± 5 mm |
| Area of application | With 1 left door wing |
| Cabinet version | With 1 left door wing |
| Door processing | For screw fixing |
| For door weight | ≤70 kg |
| Material/finish | Aluminium |
| Order reference | Order Hospa Ø 5.0 mm countersunk screws separately |
| Running gear guided by | Ball bearing |
| Set | Set with tracks |
| Supplied with | 2x Top track, pre-drilled for screw mounting, precision radius curved2x Trolley hanger, with back fixing plate vertical and horizontal adjustment1x Bottom guide, with back fixing plate adjustable roller guide, roller trim caps1x Bottom channel, pre-drilled for screw mounting, precision radius curved |
| Installation | Screw-on running gear |
| For door thickness | 19 – 45 mm |
| For door width | 400 – 1,500 mm |
