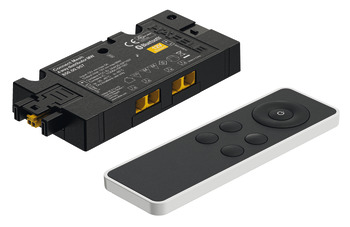

Hafele ConMsh Eco 4-Way Distr+Swt 12V MW - Plastic Black
Product Code: 850.00.983
Hafele ConMsh Eco 4-Way Distr+Swt 12V MW - Plastic Black
Product Code: 850.00.983
34 In stock
£73.81
Ex. VAT: £61.51
- Products Description
- Technical Specifications
Low voltage plug: Loox5 2-pin 12 V
Input ports: 1 x plug, Loox5 2-pin 12 V box to box
Outputs: 1 x socket, Loox5 2-pin 12 V box to box
Connected output ports: 4 x sockets, Loox5 3-pin MW 12 V
Memory function: No
Power rating: 36 W
Current carrying capacity: 3 A
Colour system: MW 3-wire technology
Area of application: For on/off switching and dimming (0-100%) and tuneable white colour change
Suitable for: For multi-white lights
Material: Plastic
Colour/finish: Black
Dimensions: Distributor: 105 x 50 x 16 mmRemote control: 125 x 40 x 12 mm
Max. number of distributors per network: 4
Max. distance within the network: 5 m
Standby power consumption: 0.50 W
Order reference: Can be extended to up to 4 distributors (tuneable white). Please order extension distributor and drivers separately. Please note nominal voltage.
Supplied with: 1x 4-Way distributor, tuneable1x Remote control
Warranty/Guarantee information: This product is covered by the Häfele Lifetime Guarantee
Input ports: 1 x plug, Loox5 2-pin 12 V box to box
Outputs: 1 x socket, Loox5 2-pin 12 V box to box
Connected output ports: 4 x sockets, Loox5 3-pin MW 12 V
Memory function: No
Power rating: 36 W
Current carrying capacity: 3 A
Colour system: MW 3-wire technology
Area of application: For on/off switching and dimming (0-100%) and tuneable white colour change
Suitable for: For multi-white lights
Material: Plastic
Colour/finish: Black
Dimensions: Distributor: 105 x 50 x 16 mmRemote control: 125 x 40 x 12 mm
Max. number of distributors per network: 4
Max. distance within the network: 5 m
Standby power consumption: 0.50 W
Order reference: Can be extended to up to 4 distributors (tuneable white). Please order extension distributor and drivers separately. Please note nominal voltage.
Supplied with: 1x 4-Way distributor, tuneable1x Remote control
Warranty/Guarantee information: This product is covered by the Häfele Lifetime Guarantee
| Area of application | For on/off switching and dimming (0-100%) and tuneable white colour change |
| Colour system | MW 3-wire technology |
| Connected output ports | 4 x sockets, Loox5 3-pin MW 12 V |
| Current carrying capacity | 3 A |
| Dimensions | Distributor: 105 x 50 x 16 mmRemote control: 125 x 40 x 12 mm |
| Input ports | 1 x plug, Loox5 2-pin 12 V box to box |
| Low voltage plug | Loox5 2-pin 12 V |
| Max. distance within the network | 5 m |
| Max. number of distributors per network | 4 |
| Memory function | No |
| Order reference | Can be extended to up to 4 distributors (tuneable white). Please order extension distributor and drivers separately. Please note nominal voltage. |
| Outputs | 1 x socket, Loox5 2-pin 12 V box to box |
| Power rating | 36 W |
| Standby power consumption | 0.50 W |
| Suitable for | For multi-white lights |
| Warranty/Guarantee information | This product is covered by the Häfele Lifetime Guarantee |
| Material | Plastic |
| Colour/Finish | Black |
| Supplied with | 1x 4-Way distributor, tuneable1x Remote control |
