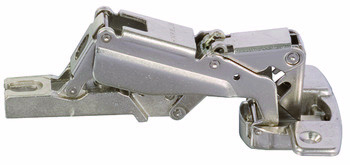

M310A 155D FO wo SC w M.Plt Euro SNP - Steel Nickel Plated
Product Code: 311.03.091
M310A 155D FO wo SC w M.Plt Euro SNP - Steel Nickel Plated
Product Code: 311.03.091
42,648 In stock
£1.36
Ex. VAT: £1.13
- Products Description
- Technical Specifications
- Dimensions
Function: With automatic closing spring, Without soft closing mechanism
Concealed hinge version: Full overlay
For door material: Wood
Material: Steel
Colour/finish: nickel plated
Opening angle: 155°
Cup drilling depth: 12 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 45/9.5
Adjustment facility: Side adjustment -5 mm, height adjustment ±2 mm (via mounting plate), depth adjustment +/-2.5 mm
Hafele Lifetime Guarantee: 25 years
Order reference: Order Hospa 3.5 mm countersunk head screws separately for the hinge
Supplied with: 1x Concealed hinge1x Slide on mounting plate, one part plate with ± 2 mm height adjustment via slot, pre-mounted with euro screw
Warranty/Guarantee information: This product is covered by the Häfele Lifetime Guarantee
Concealed hinge version: Full overlay
For door material: Wood
Material: Steel
Colour/finish: nickel plated
Opening angle: 155°
Cup drilling depth: 12 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 45/9.5
Adjustment facility: Side adjustment -5 mm, height adjustment ±2 mm (via mounting plate), depth adjustment +/-2.5 mm
Hafele Lifetime Guarantee: 25 years
Order reference: Order Hospa 3.5 mm countersunk head screws separately for the hinge
Supplied with: 1x Concealed hinge1x Slide on mounting plate, one part plate with ± 2 mm height adjustment via slot, pre-mounted with euro screw
Warranty/Guarantee information: This product is covered by the Häfele Lifetime Guarantee
| Adjustment facility | Side adjustment -5 mm, height adjustment ±2 mm (via mounting plate), depth adjustment +/-2.5 mm |
| Concealed hinge version | Full overlay |
| Cup drilling Ø | 35 mm |
| Cup fixing | For screw fixing |
| For door material | Wood |
| Function | With automatic closing spring, Without soft closing mechanism |
| Hafele Lifetime Guarantee | 25 years |
| Order reference | Order Hospa 3.5 mm countersunk head screws separately for the hinge |
| Warranty/Guarantee information | This product is covered by the Häfele Lifetime Guarantee |
| Material | Steel |
| Colour/Finish | nickel plated |
| Opening angle | 155° |
| Supplied with | 1x Concealed hinge1x Slide on mounting plate, one part plate with ± 2 mm height adjustment via slot, pre-mounted with euro screw |
| Drilling pattern | 45/9.5 |
| Cup drilling depth | 12 mm |
