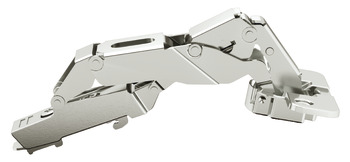

M310 155D Hinge Qck HO 48/6 w SC - Steel Nickel Plated
Product Code: 311.63.734
M310 155D Hinge Qck HO 48/6 w SC - Steel Nickel Plated
Product Code: 311.63.734
106 In stock
£2.83
Ex. VAT: £2.36
This product is part of a range with 2 options. Select to view the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 49 | £2.83 | — |
| 50+ | £2.27 | Save 20% |
- Products Description
- Technical Specifications
- Dimensions
Area of application: For cabinets with internal pull outs or extending trays
Crank type: Cranked
For door material: Wood
Material: Steel
Colour/finish: nickel plated
Opening angle: 155°
Cup drilling depth: 12 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 48/6
Adjustment facility: Side adjustment ±2.5 mm, Height adjustment ±2 mm (via mounting plate), Depth adjustment ±2 mm
Installation: Door to cabinet with quick fixing system
Hafele Lifetime Guarantee: 25 years
Order reference: Order mounting plate and Hospa 3.5 mm countersunk screws separately
Warranty/Guarantee information: This product is covered by the Häfele Lifetime Guarantee
Crank type: Cranked
For door material: Wood
Material: Steel
Colour/finish: nickel plated
Opening angle: 155°
Cup drilling depth: 12 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 48/6
Adjustment facility: Side adjustment ±2.5 mm, Height adjustment ±2 mm (via mounting plate), Depth adjustment ±2 mm
Installation: Door to cabinet with quick fixing system
Hafele Lifetime Guarantee: 25 years
Order reference: Order mounting plate and Hospa 3.5 mm countersunk screws separately
Warranty/Guarantee information: This product is covered by the Häfele Lifetime Guarantee
| Adjustment facility | Side adjustment ±2.5 mm, Height adjustment ±2 mm (via mounting plate), Depth adjustment ±2 mm |
| Area of application | For cabinets with internal pull outs or extending trays |
| Crank type | Cranked |
| Cup drilling Ø | 35 mm |
| Cup fixing | For screw fixing |
| For door material | Wood |
| Hafele Lifetime Guarantee | 25 years |
| Order reference | Order mounting plate and Hospa 3.5 mm countersunk screws separately |
| Warranty/Guarantee information | This product is covered by the Häfele Lifetime Guarantee |
| Material | Steel |
| Colour/Finish | nickel plated |
| Opening angle | 155° |
| Installation | Door to cabinet with quick fixing system |
| Drilling pattern | 48/6 |
| Cup drilling depth | 12 mm |
