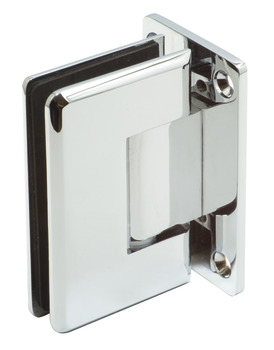

180D Shower Dr Hinge Wall-Gls Brs PCP - Brass Chrome Plated, Polished
Product Code: 981.78.267
180D Shower Dr Hinge Wall-Gls Brs PCP - Brass Chrome Plated, Polished
Product Code: 981.78.267
60 In stock
£37.02
Ex. VAT: £30.85
- Products Description
- Technical Specifications
- Dimensions
For glass thickness: 8 – 12 mm
Colour/finish: chrome plated, polished
Width: 64 mm
Height: 90 mm
Depth: 50 mm
Material: Brass
Load bearing capacity: ≤36 kg, panel weight must not exceed 36 kg per pair of hinges
For door height: ≤2,000 mm
For door width: ≤915 mm
Installation: Screw and clamp fixing
Order reference: Order qty: 1 pc (2 pcs required per door)
Supplied with: Fixings
Colour/finish: chrome plated, polished
Width: 64 mm
Height: 90 mm
Depth: 50 mm
Material: Brass
Load bearing capacity: ≤36 kg, panel weight must not exceed 36 kg per pair of hinges
For door height: ≤2,000 mm
For door width: ≤915 mm
Installation: Screw and clamp fixing
Order reference: Order qty: 1 pc (2 pcs required per door)
Supplied with: Fixings
| Order reference | Order qty: 1 pc (2 pcs required per door) |
| Material | Brass |
| Colour/Finish | chrome plated, polished |
| Load bearing capacity | ≤36 kg, panel weight must not exceed 36 kg per pair of hinges |
| Supplied with | Fixings |
| Installation | Screw and clamp fixing |
| For door height | ≤2,000 mm |
| For door width | ≤915 mm |
| For glass thickness | 8 – 12 mm |
| Height | 90 mm |
| Width | 64 mm |
| Depth | 50 mm |
