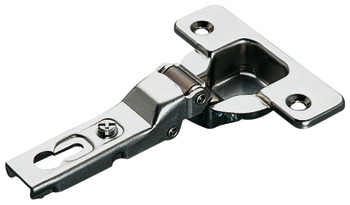

M310 94D Fridge Hinge Std FO Hos - Steel Nickel Plated
Product Code: 329.36.641
M310 94D Fridge Hinge Std FO Hos - Steel Nickel Plated
Product Code: 329.36.641
2,398 In stock
£3.74
Ex. VAT: £3.12
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £3.74 | — |
| 10 – 49 | £3.56 | Save 5% |
| 50 – 99 | £3.37 | Save 10% |
| 100+ | £3.00 | Save 20% |
- Products Description
- Technical Specifications
- Dimensions
Area of application: For refrigerator doors
Function: With automatic closing spring, Without soft closing mechanism
Concealed hinge version: Full overlay
Crank type: Cranked
For door material: Wood
Door processing for assembly: With cup drilling
Material: Steel
Colour/finish: nickel plated
Opening angle: 94°
Cup drilling depth: 11 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 52/5.5
Adjustment facility: Side adjustment
Installation: Door to cabinet with slide-on system using Cruciform mounting plates
Hafele Lifetime Guarantee: 25 years
Order reference: Order mounting plate 329.67.040 and Hospa 3.5 mm countersunk screws separately
Warranty/Guarantee information: This product is covered by the Häfele Lifetime Guarantee
Function: With automatic closing spring, Without soft closing mechanism
Concealed hinge version: Full overlay
Crank type: Cranked
For door material: Wood
Door processing for assembly: With cup drilling
Material: Steel
Colour/finish: nickel plated
Opening angle: 94°
Cup drilling depth: 11 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 52/5.5
Adjustment facility: Side adjustment
Installation: Door to cabinet with slide-on system using Cruciform mounting plates
Hafele Lifetime Guarantee: 25 years
Order reference: Order mounting plate 329.67.040 and Hospa 3.5 mm countersunk screws separately
Warranty/Guarantee information: This product is covered by the Häfele Lifetime Guarantee
| Adjustment facility | Side adjustment |
| Area of application | For refrigerator doors |
| Concealed hinge version | Full overlay |
| Crank type | Cranked |
| Cup drilling Ø | 35 mm |
| Cup fixing | For screw fixing |
| Door processing for assembly | With cup drilling |
| For door material | Wood |
| Function | With automatic closing spring, Without soft closing mechanism |
| Hafele Lifetime Guarantee | 25 years |
| Order reference | Order mounting plate 329.67.040 and Hospa 3.5 mm countersunk screws separately |
| Warranty/Guarantee information | This product is covered by the Häfele Lifetime Guarantee |
| Material | Steel |
| Colour/Finish | nickel plated |
| Opening angle | 94° |
| Installation | Door to cabinet with slide-on system using Cruciform mounting plates |
| Drilling pattern | 52/5.5 |
| Cup drilling depth | 11 mm |
