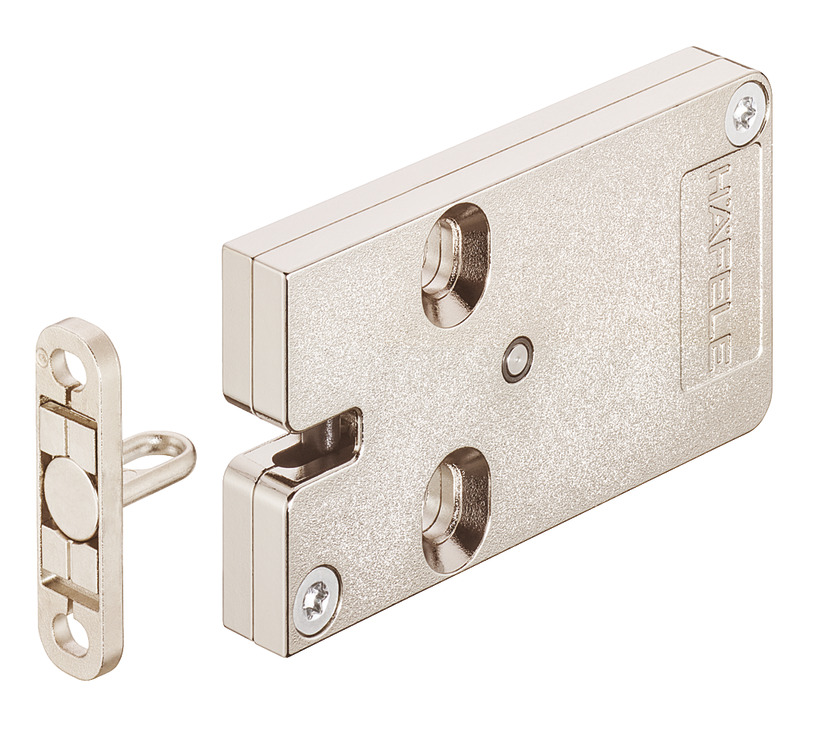

Dialock EFL3C (G3) Furniture lock case - Housing And Locking Bolt: Zinc Alloy Housing And Locking Bolt: Nickel Plated
Product Code: 237.59.201
Dialock EFL3C (G3) Furniture lock case - Housing And Locking Bolt: Zinc Alloy Housing And Locking Bolt: Nickel Plated
Product Code: 237.59.201
39 In stock
£130.20
Ex. VAT: £108.50
This product is part of a range with 2 options. Select to view the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1+ | £130.20 | — |
- Products Description
- Technical Specifications
Product Category: Furniture Lock
Area of application: Mains-operated, electric lock for indoor use: For hinged doors, flaps, sliding doors, drawers or tambour doors in furniture, office and shopfitting, suitable for hinged doors and drawers with soft closing and self closing mechanisms
Version: Electromechanical furniture lock with self-adjusting locking component, transverse locking plate, flat design 12 mm, connector plug with locking mechanism
Material: Housing and locking bolt: Zinc alloy
Colour/finish: Housing and locking bolt: Nickel plated
Functionality: In combination with the FT 200/FT 200 CAP furniture terminal, up to 4 EFL 3/EFL 3C furniture locks can be implemented in parallel (keyed alike) and/or individually (keyed to differ). Once an authorised user key has been presented, the furniture locks are unlocked for 3 seconds (standard latchbolt function). It locks automatically after the open time has elapsed. Other locking functions can be found in the FT 200/FT 200C furniture terminal. The door status (locked/unlocked) can be determined using the feedback contact and an additional add-on with the EFL 3C. The connected FT 200/FT 200 CAP furniture terminal sets a signal for alarming. More information about functionality can be found under the FT 200/FT 200 CAP furniture terminal.In combination with the MLA 6P/MLA 8 multi-lock adapters, further EFL 3/EFL 3C furniture locks can be implemented. More information about the connection options and the maximum possible cable lengths can be found with the MLA 6P/MLA 8 multi-lock adapters.
Order reference: Please order CC 200 (G3) connection cable and marking gauge for EFL 3/EFL 3C separately.

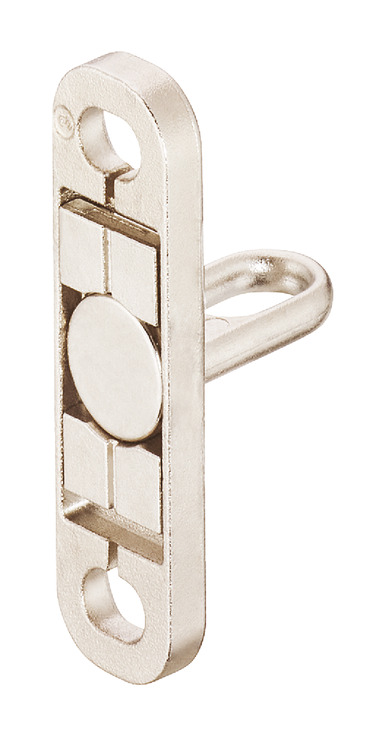

Supplied with: 1 furniture lock1 self-adjusting locking plate
Area of application: Mains-operated, electric lock for indoor use: For hinged doors, flaps, sliding doors, drawers or tambour doors in furniture, office and shopfitting, suitable for hinged doors and drawers with soft closing and self closing mechanisms
Version: Electromechanical furniture lock with self-adjusting locking component, transverse locking plate, flat design 12 mm, connector plug with locking mechanism
Material: Housing and locking bolt: Zinc alloy
Colour/finish: Housing and locking bolt: Nickel plated
Functionality: In combination with the FT 200/FT 200 CAP furniture terminal, up to 4 EFL 3/EFL 3C furniture locks can be implemented in parallel (keyed alike) and/or individually (keyed to differ). Once an authorised user key has been presented, the furniture locks are unlocked for 3 seconds (standard latchbolt function). It locks automatically after the open time has elapsed. Other locking functions can be found in the FT 200/FT 200C furniture terminal. The door status (locked/unlocked) can be determined using the feedback contact and an additional add-on with the EFL 3C. The connected FT 200/FT 200 CAP furniture terminal sets a signal for alarming. More information about functionality can be found under the FT 200/FT 200 CAP furniture terminal.In combination with the MLA 6P/MLA 8 multi-lock adapters, further EFL 3/EFL 3C furniture locks can be implemented. More information about the connection options and the maximum possible cable lengths can be found with the MLA 6P/MLA 8 multi-lock adapters.
Order reference: Please order CC 200 (G3) connection cable and marking gauge for EFL 3/EFL 3C separately.
Supplied with: 1 furniture lock1 self-adjusting locking plate
| Area of application | Mains-operated, electric lock for indoor use: For hinged doors, flaps, sliding doors, drawers or tambour doors in furniture, office and shopfitting, suitable for hinged doors and drawers with soft closing and self closing mechanisms |
| Functionality | In combination with the FT 200/FT 200 CAP furniture terminal, up to 4 EFL 3/EFL 3C furniture locks can be implemented in parallel (keyed alike) and/or individually (keyed to differ). Once an authorised user key has been presented, the furniture locks are unlocked for 3 seconds (standard latchbolt function). It locks automatically after the open time has elapsed. Other locking functions can be found in the FT 200/FT 200C furniture terminal. The door status (locked/unlocked) can be determined using the feedback contact and an additional add-on with the EFL 3C. The connected FT 200/FT 200 CAP furniture terminal sets a signal for alarming. More information about functionality can be found under the FT 200/FT 200 CAP furniture terminal.In combination with the MLA 6P/MLA 8 multi-lock adapters, further EFL 3/EFL 3C furniture locks can be implemented. More information about the connection options and the maximum possible cable lengths can be found with the MLA 6P/MLA 8 multi-lock adapters. |
| Order reference | Please order CC 200 (G3) connection cable and marking gauge for EFL 3/EFL 3C separately. |
| Product Category | Furniture Lock |
| Version | Electromechanical furniture lock with self-adjusting locking component, transverse locking plate, flat design 12 mm, connector plug with locking mechanism |
| Material | Housing and locking bolt: Zinc alloy |
| Colour/Finish | Housing and locking bolt: Nickel plated |
| Supplied with | 1 furniture lock1 self-adjusting locking plate |
