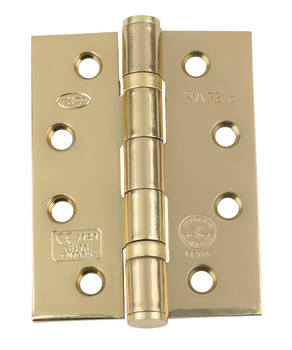

Butt Hinge 2BB 102x76mm 201 Stainless Steel EB x3 - Stainless Steel, Grade 201 Electric Brass Plated
Product Code: 926.83.658
Butt Hinge 2BB 102x76mm 201 Stainless Steel EB x3 - Stainless Steel, Grade 201 Electric Brass Plated
Product Code: 926.83.658
3,047 In stock
£8.62
Ex. VAT: £7.18
- Products Description
- Technical Specifications
- Dimensions
Version: ANSI hole patternTwo high quality ball bearing race joints
Flange shape: Square
Flange width: 31 mm
Colour/finish: electric brass plated
Material: Stainless steel, grade 201
Flange thickness: 3 mm
Flange height: 102 mm
Standards: CE markedBS EN 1935, grade 13
Area of application: For internal applications
Maximum Adjusted Door Weight: 120 kg
Pin Ø: 14 mm
Bearing type: Ball bearing
Supplied with: 3x Ball bearing butt hingesFixings
Flange shape: Square
Flange width: 31 mm
Colour/finish: electric brass plated
Material: Stainless steel, grade 201
Flange thickness: 3 mm
Flange height: 102 mm
Standards: CE markedBS EN 1935, grade 13
Area of application: For internal applications
Maximum Adjusted Door Weight: 120 kg
Pin Ø: 14 mm
Bearing type: Ball bearing
Supplied with: 3x Ball bearing butt hingesFixings
| Area of application | For internal applications |
| Bearing type | Ball bearing |
| Flange shape | Square |
| Maximum Adjusted Door Weight | 120 kg |
| Pin Ø | 14 mm |
| Standards | CE markedBS EN 1935, grade 13 |
| Version | ANSI hole patternTwo high quality ball bearing race joints |
| Material | Stainless steel, grade 201 |
| Colour/Finish | electric brass plated |
| Supplied with | 3x Ball bearing butt hingesFixings |
| Flange width | 31 mm |
| Flange height | 102 mm |
| Flange thickness | 3 mm |
